Flagship case study / Full-stack implementation
PermitPulse OS
Evidence-first permit investigation software for a record that can be inspected, reviewed, and delivered.
Built as a secure Cloudflare-based operations workspace with authenticated case management, evidence provenance, deterministic packet generation, and private document storage.
Available for contract frontend, AI implementation, WordPress support, and workflow prototyping in LA or remote.
- Role
- Product strategy, UX, frontend, workflow design, integration, QA, and delivery system.
- Stack
- React, TypeScript, Vite, Cloudflare Workers, D1, R2, Better Auth.
- Output
- Authenticated case workspace plus canonical HTML, text, preview, and PDF packet views.
- Proof
- Working operational interface and a complete, reviewer-controlled client deliverable.
01 / The problem
A stalled permit is usually a record problem first.
Permit records are fragmented across portals, emails, uploads, correction notices, and follow-up conversations. Teams often know a project is stalled but cannot quickly establish what is confirmed, what remains unresolved, and what should happen next.
The product challenge was to preserve the source record while making it useful: reconstruct the case, expose uncertainty, guide review, and produce a professional deliverable without overstating what the jurisdiction has confirmed.
02 / The system
One workspace from evidence intake to client delivery.
Evidence Register
Source records, provenance, verification state, and links back to the underlying material.
Timeline Reconstruction
Dated events connected to evidence so the sequence stays traceable.
Findings + Questions
Grounded conclusions kept separate from missing facts and unresolved jurisdiction risk.
Reviewer Workspace
Human verification, approval state, quality warnings, and delivery lifecycle controls.
Dependency Map
Agency and discipline dependencies translated into an ordered review sequence.
Follow-up Kit
Open questions and recommended next contacts prepared from the reviewed record.
Canonical Packet
Client-ready preview, HTML, text, and PDF generated from one presentation graph.
03 / The workflow
A concise path through a complicated record.
- 01Collect evidence
- 02Reconstruct the record
- 03Review findings
- 04Generate the packet
- 05Prepare the next agency contact
04 / Engineering
Built for controlled operations, not a one-off demo.
- Authenticated workspaceBetter Auth protects case operations and reviewer actions.
- Actor and case isolationRecords and lifecycle state stay scoped to the authorized workspace.
- Cloudflare Worker backendRequest handling and application logic run in a focused edge deployment.
- D1 case recordsStructured evidence, findings, timeline events, and delivery state share a durable lifecycle.
- Private R2 evidence storageSource documents remain private while metadata and provenance stay inspectable.
- Canonical presentation graphPreview, HTML, text, and PDF consume the same ordered packet model.
- Deterministic readiness checksPacket gates surface completeness and warnings before review or delivery.
- Mobile-first operationsCore review and case controls remain usable in a compact field-ready layout.
- React
- TypeScript
- Vite
- Cloudflare Workers
- D1
- R2
- Better Auth
- PDF / HTML generation
- AI-assisted development workflow
05 / Product proof
The working system, screen by screen.
Select any screen for a focused view.

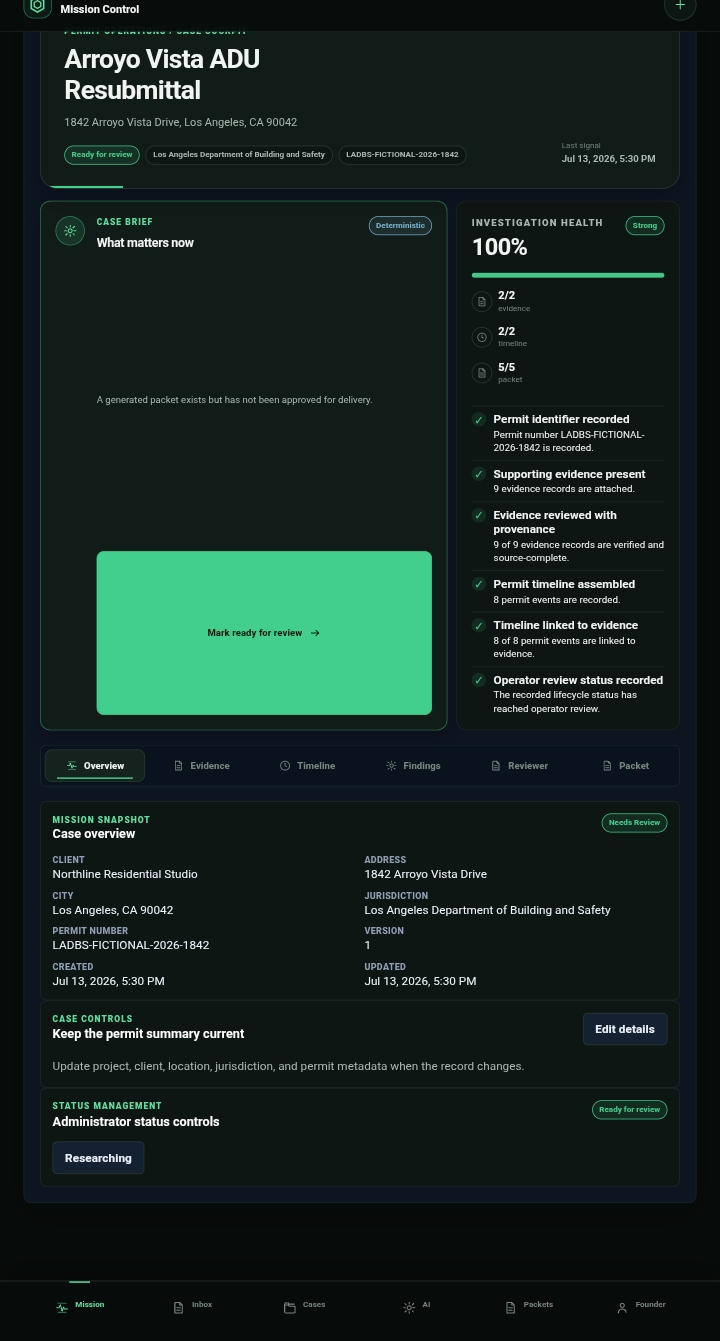

Proves the case has a usable operational center, not just a report output.

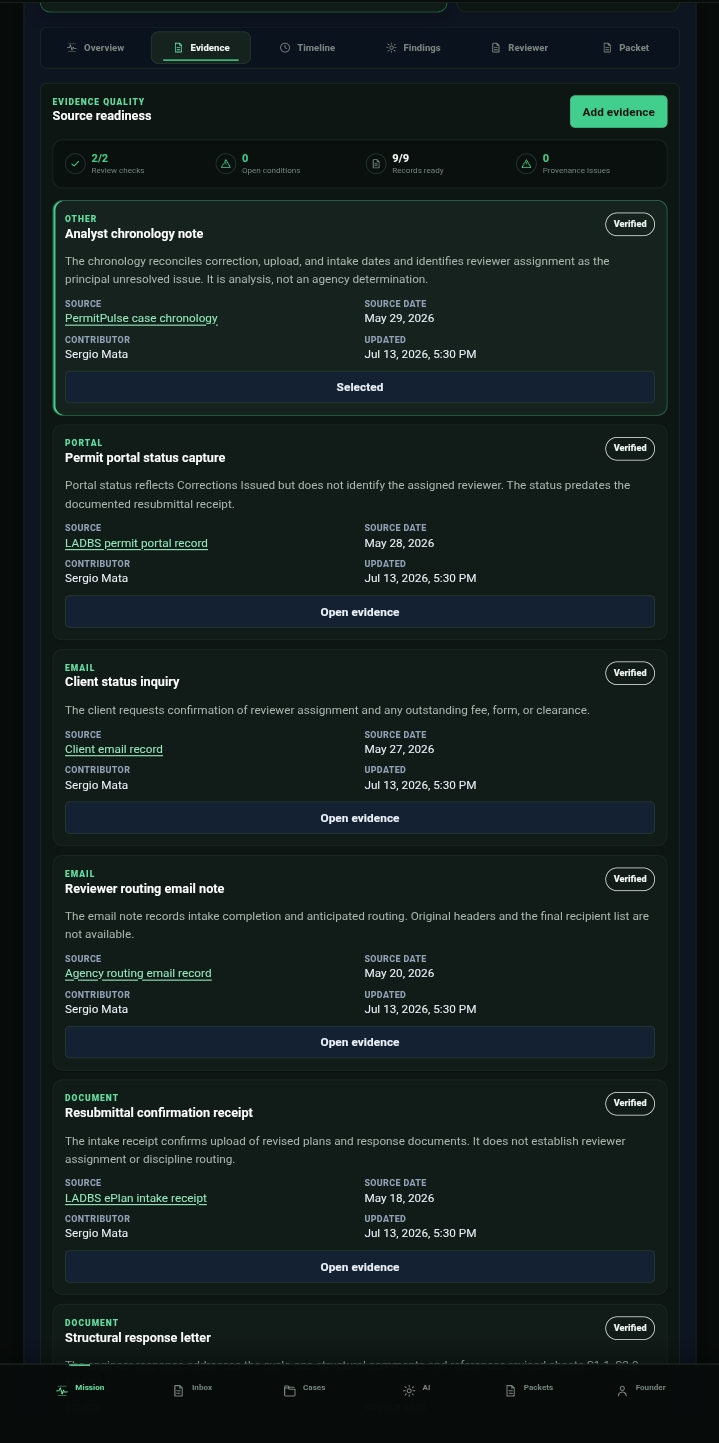

Shows that claims stay connected to source material and verification state.

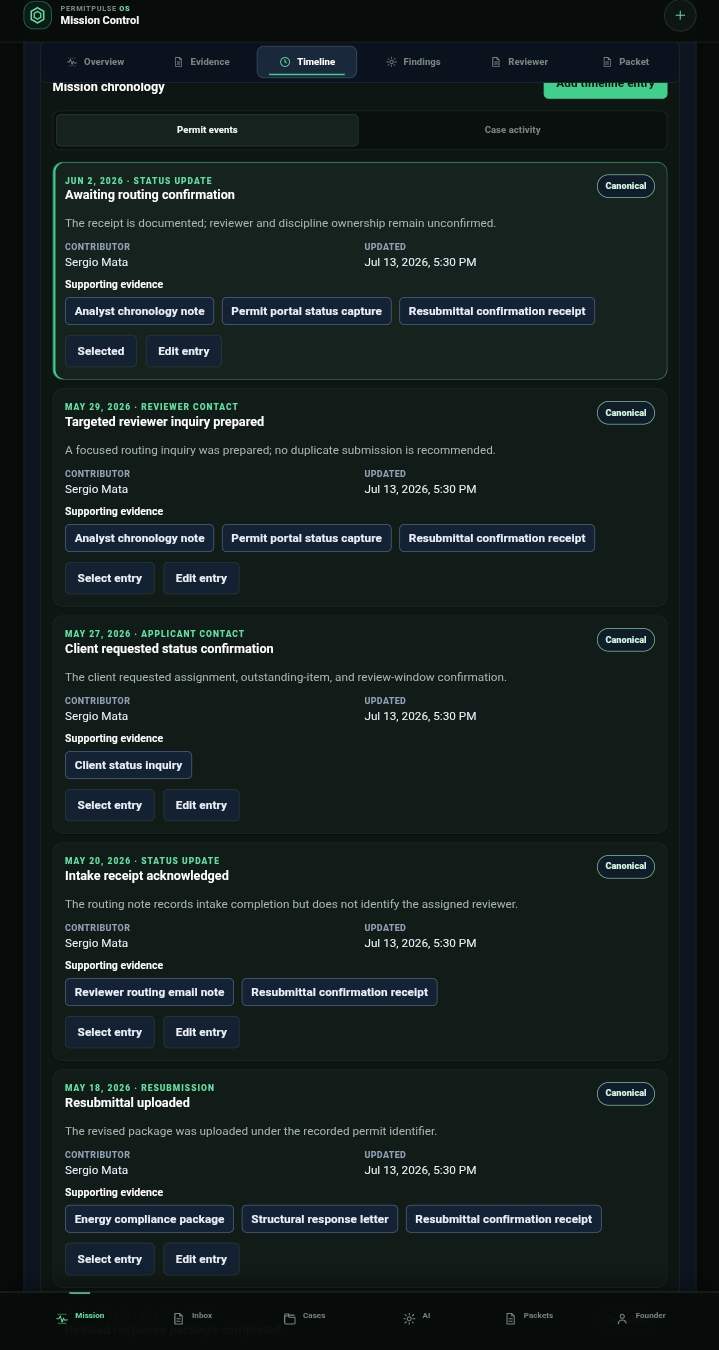

Turns fragmented dated records into an evidence-linked sequence.

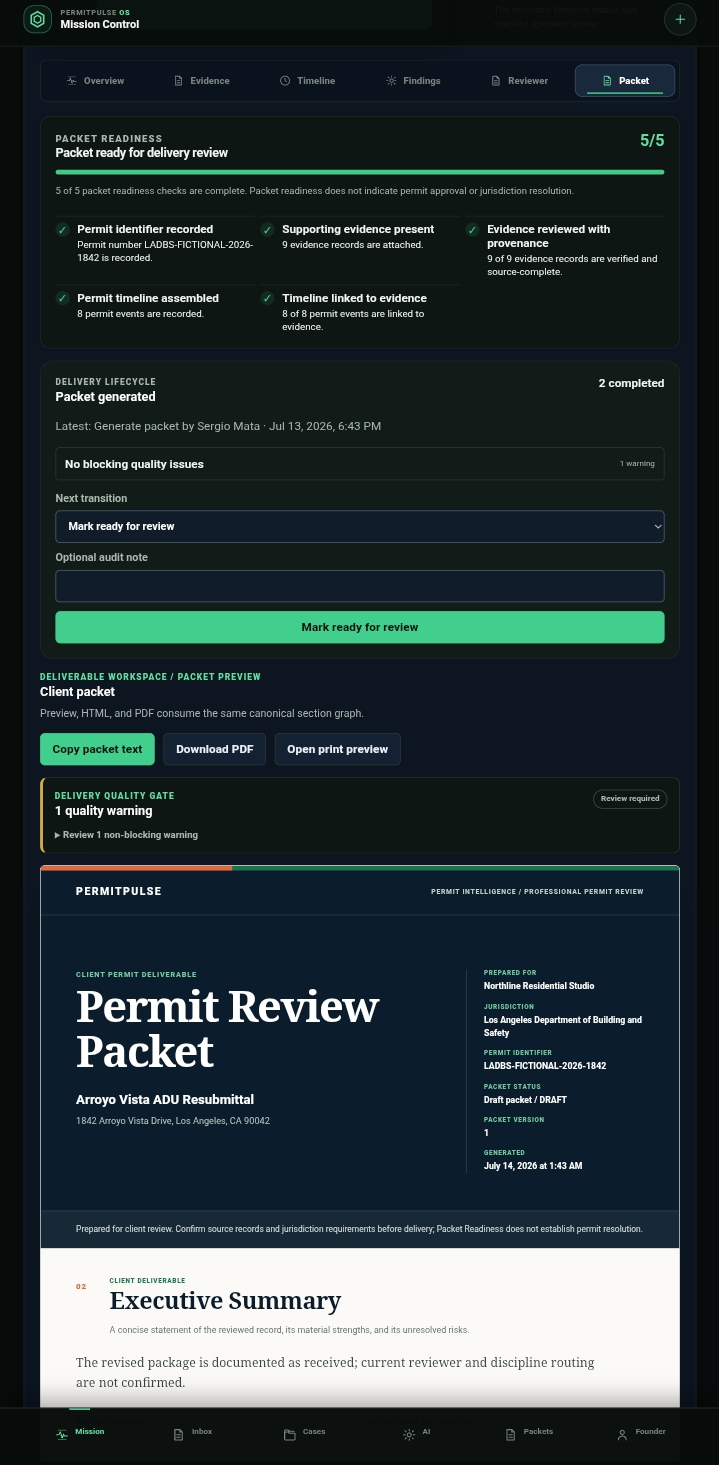

Proves that readiness checks and reviewer approval sit before client delivery.

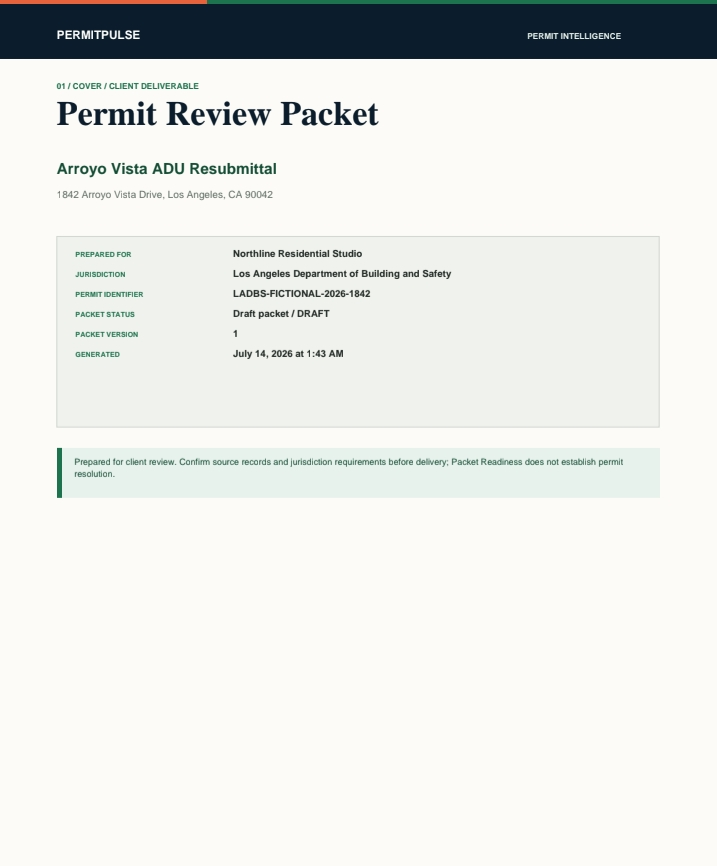

Establishes a professional, versioned artifact prepared for client review.

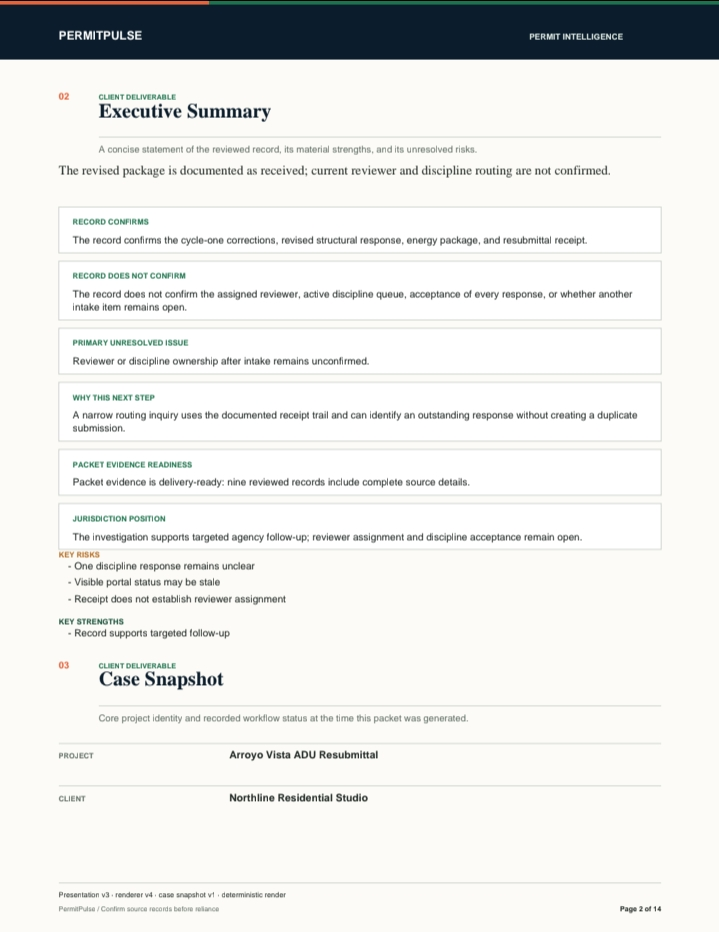

Separates confirmed facts from open issues instead of hiding uncertainty.

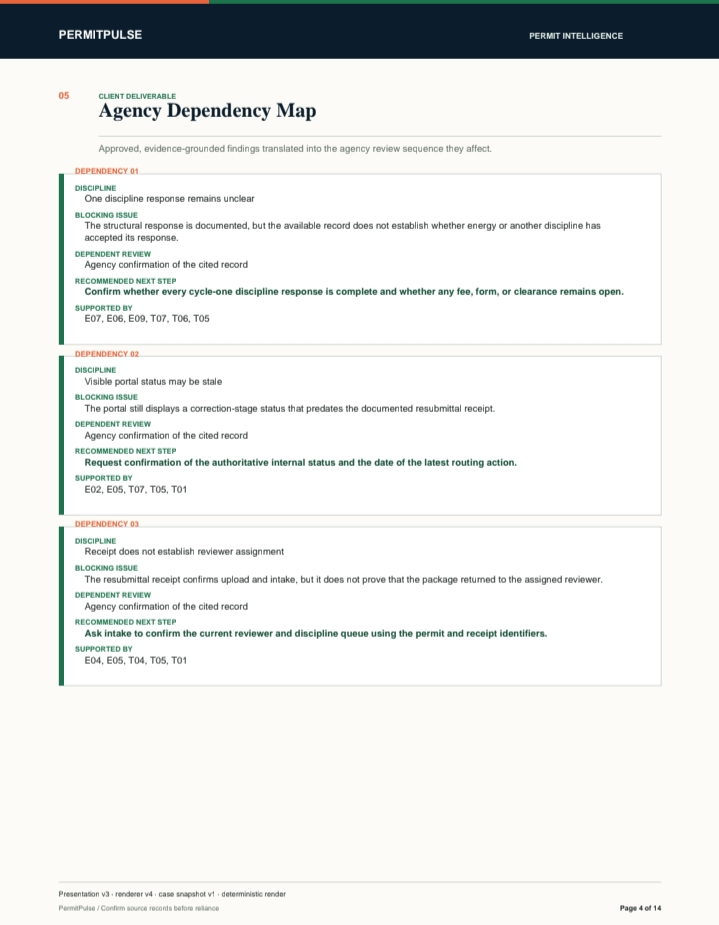

Translates reviewed findings into an ordered agency follow-up sequence.

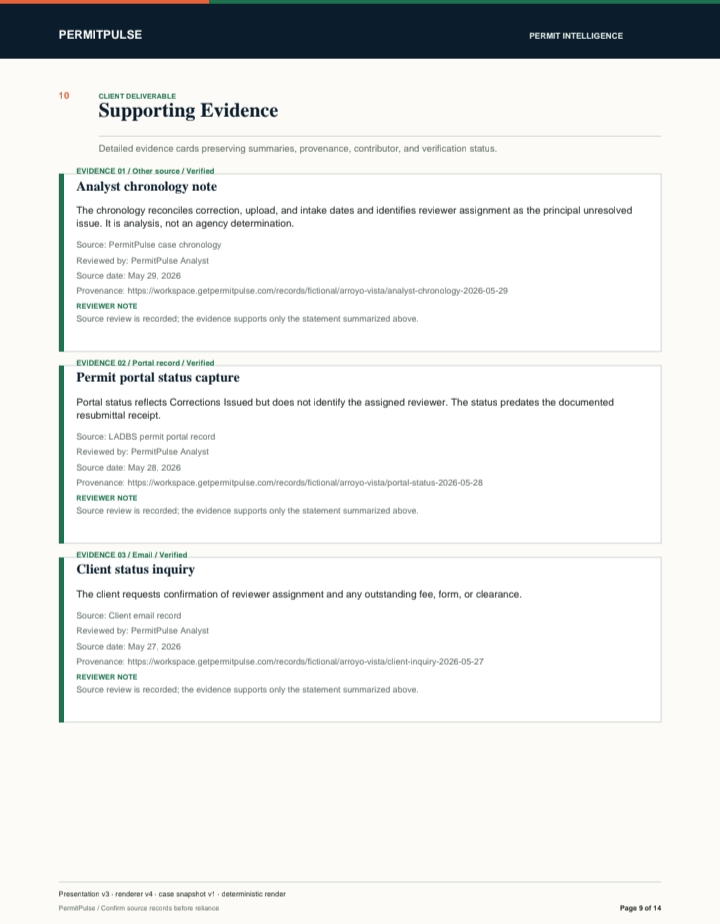

Keeps the final packet auditable with summaries, sources, and reviewer details.
06 / Outcome
A complete implementation workflow from intake through delivery.
- Converts fragmented records into an inspectable case record.
- Preserves source provenance and evidence links.
- Produces a professional client-ready deliverable.
- Separates packet completeness from unresolved jurisdiction risk.
- Demonstrates a full implementation workflow from intake through delivery.
